Line array torn- TMD-545/N 6,33m/500kg

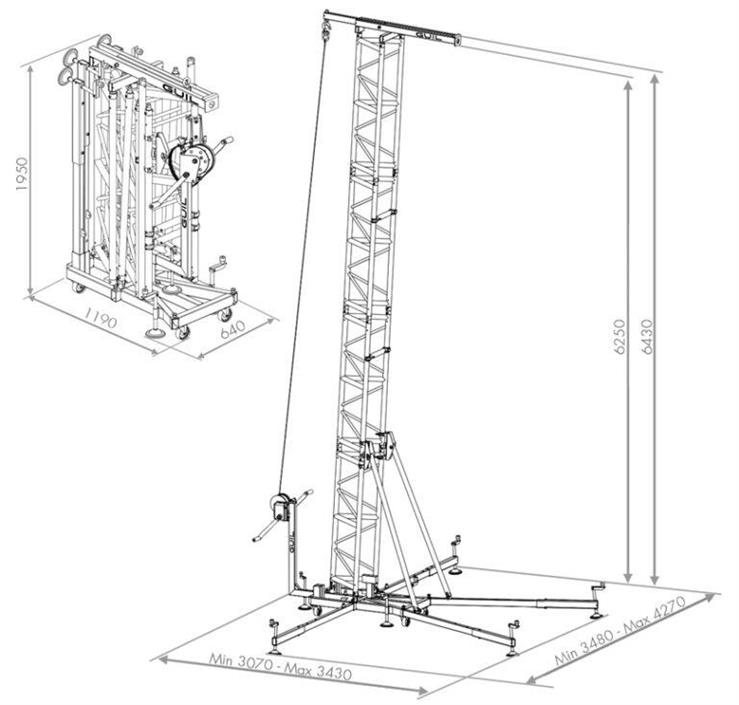

Transportmått: L1190 x B640 x H1950  vikt: 190 kg.

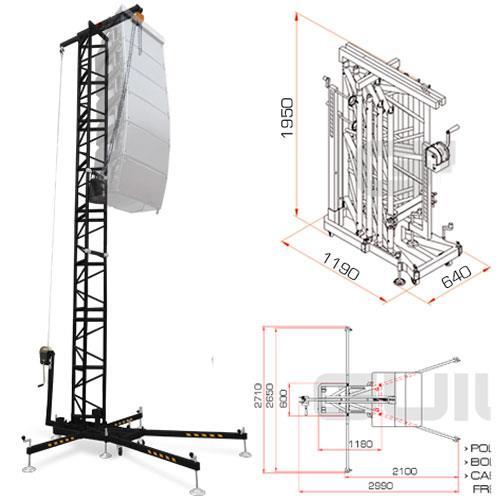

Arbetsmått: L2990 x B2710 x H6430  inkl. telf / handspel

SPECIFICATIONS
TMD-545/N
Maximum Overall Height: 6.43 m I 21 ft 1 in
Maximum Working Height: 6.25 m I 20 ft 6 in
Maximum Load: 500 kg I 1103 lb
PA System lifted by: 2000 kg Chain hoist (Included)
Tower Structure lifted by: Auto Brake Winch with two handles (Included)
Mast Sections – Stacking Truss: 500 x 500 mm (4 units. Lenght: 1500 mm)
Material: Aluminium (alloy 6082-T6) & Steel. BLACK Finish

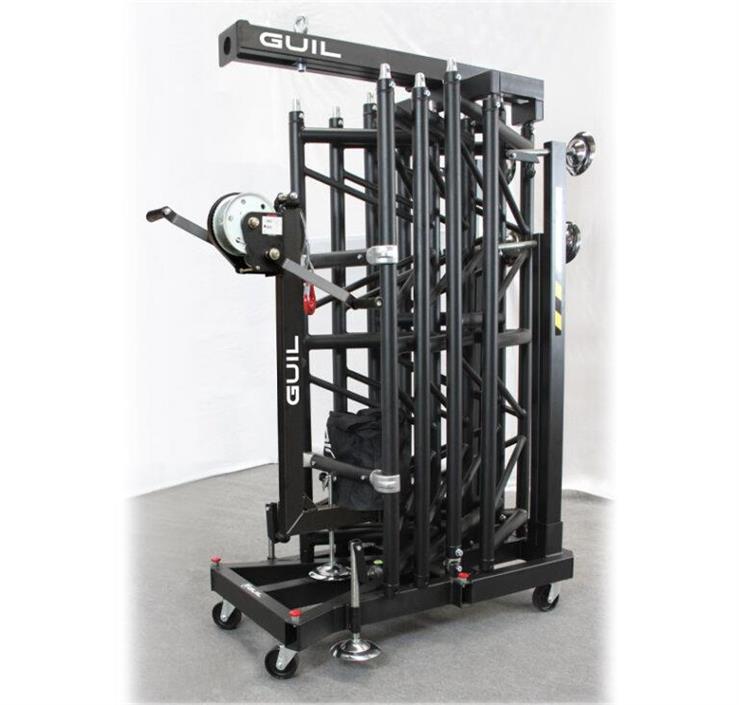

Folded Height: 1.95 m I 6 ft 5 in (Compact Design)
Volume: 1.49 m3 I 52.6 ft3 (64 x 119 x 195 cm).
Everthing in 1 piece

Use: For OUTDOOR and Indoor use
Certified for outside use: According to: EN 13814
Checked for wind speed up to: 8 Beaufort
Complies with Standards: 2006/42/CE
EN 17206 (Replaces DIN 56950-1)
DGUV 17 & 18, DGUV Norma 115-002 (Formerly BGV-C1)

Net Weight: 190 kg I 419 lb (All components included)
